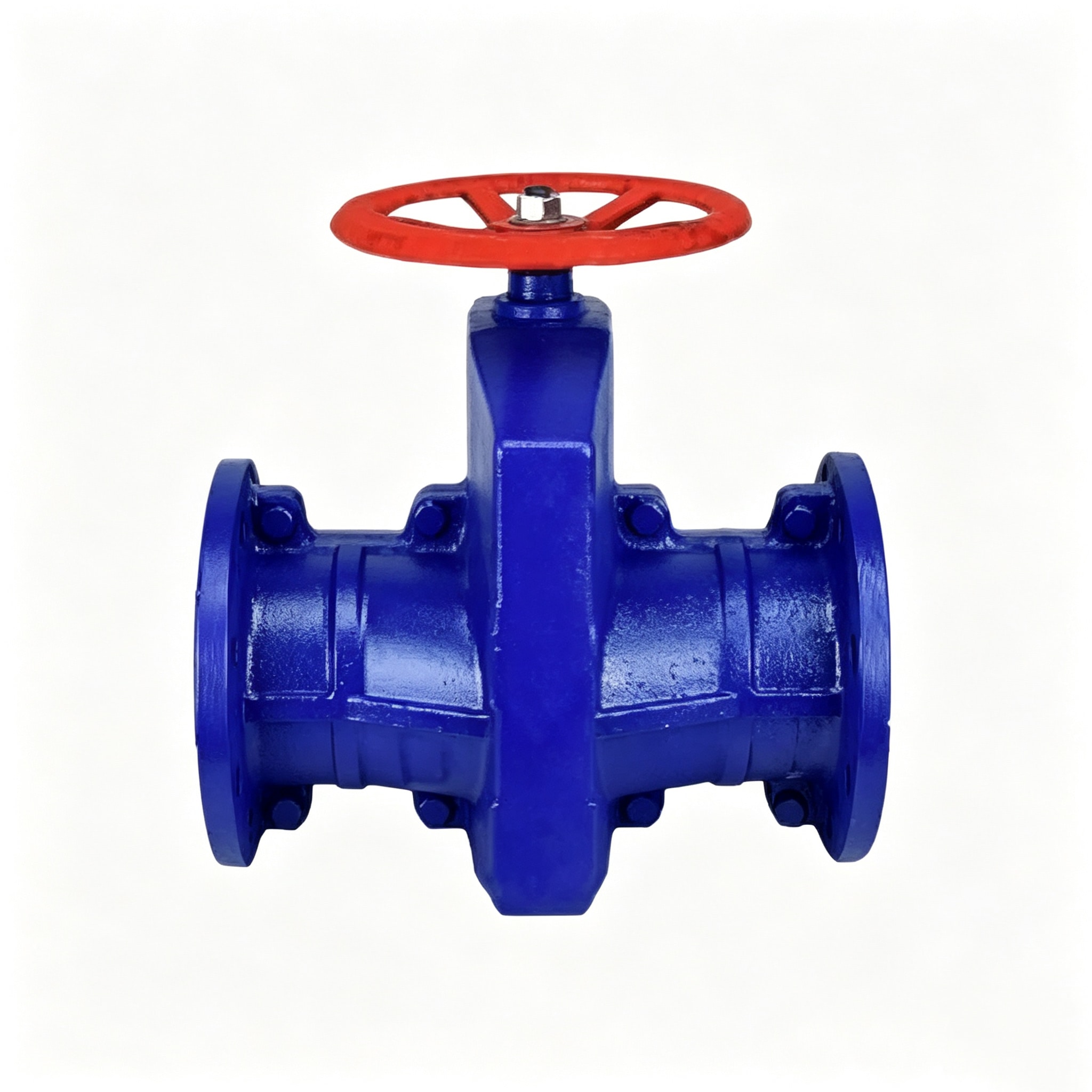

Flanged Manual Pinch Valve

Standards Compliance

A. Flange Standard: GB/T 17241.6

B. Face-to-Face Standard: GB/T 12221

C. Testing Standard: GB/T 13927

D. Design Standard: Q/JBGN02

Design Features

A. Flexible Rubber Sleeve: EPDM sleeve provides a flexible flow passage for suitable industrial media.

B. Full-Bore Flow Path: Smooth internal passage helps minimize flow obstruction when the valve is fully open.

C. Media Isolation: The process medium flows through the rubber sleeve, reducing direct contact with the valve body.

D. Abrasion Resistance: Suitable for handling compatible abrasive media and slurries.

E. Handwheel Operation: Simple and convenient manual opening and closing.

F. Replaceable Sleeve: The rubber sleeve can be replaced when required, subject to the valve construction.

G. Flanged Connection: Designed for installation in compatible flanged pipeline systems.

H. Industrial Applications: Suitable for mining, mineral processing, wastewater treatment, and slurry handling, subject to media compatibility.
