Standards Compliance
Design and Manufacture: API 609, ASME B16.34
Face to face (end to end): API 609, ASME B16.10
Flanged connection: Wafer style for ANSI 150~600LB, PN10/PN16/PN25
Test and inspection: API 598
Actuator mounting: ISO 5211 (Gearbox End)

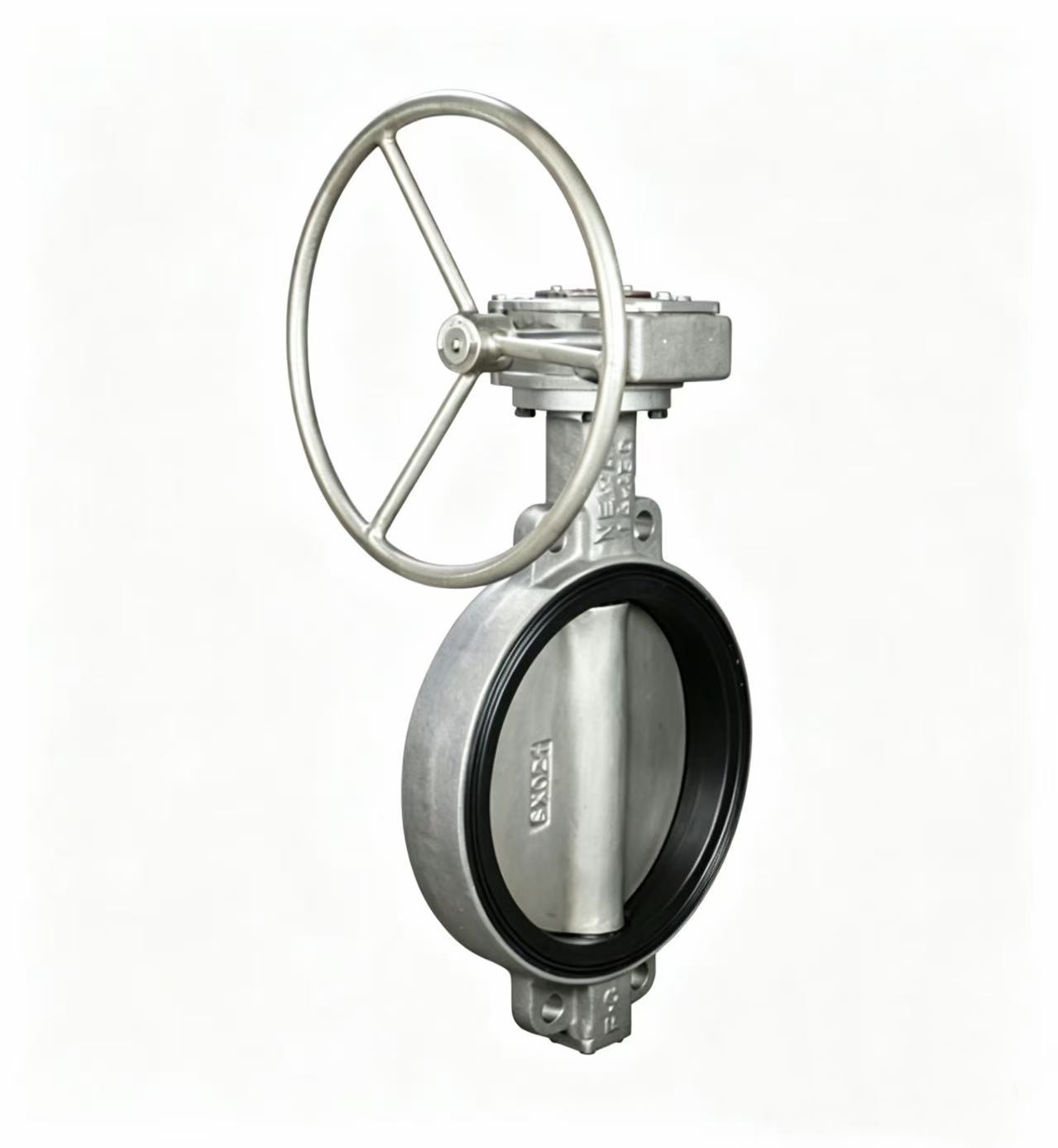

Design Features (Worm Gear Actuation)
A. Heavy-Duty Worm Gearbox: Precision machined helical gears for smooth, low-torque 90° rotation; provides high mechanical advantage for large diameter valves.
B. Positive Locking Mechanism: Securely holds valve in any open/closed position to prevent drift, meeting API 609 safety requirements.
C. Integral ISO 5211 Mounting Pad: Accepts directly mounts pneumatic/electric actuators without additional brackets for automated conversion.
D. Anti-Blowout Stem: Stem is retained within the body to prevent extrusion under high pressure differential conditions.
E. Full Port Design: Minimum pressure loss, full flow area equivalent to pipe diameter.

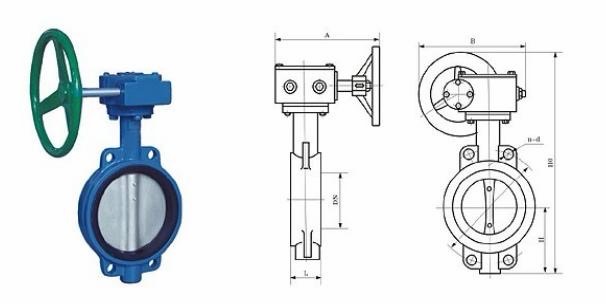

Main Connection Dimension and Outline Dimension
unit:mm
|
DN
|
Main connection dimension
| ||||||||||
|
Main outline dimension
|
1.0MPa
|
1.6MPa
|
2.5MPa
| ||||||||
|
L |
H |
H0 |
A |
B |
D0 |
n-d |
D0 |
n-d |
D0 |
n-d | |
|
50 |
43 |
63 |
235 |
270 |
110 |
110 |
4-14 |
125 |
4-18 |
125 |
4-18 |
|
65 |
46 |
70 |
250 |
270 |
110 |
130 |
4-14 |
145 |
4-18 |
145 |
4-18 |
|
80 |
46 |
83 |
275 |
270 |
110 |
150 |
4-18 |
160 |
8-18 |
160 |
8-18 |
|
100 |
52 |
105 |
316 |
270 |
110 |
170 |
4-18 |
180 |
8-18 |
180 |
8-18 |
|
125 |
56 |
115 |
340 |
310 |
110 |
200 |
8-18 |
210 |
8-18 |
210 |
8-18 |
|
150 |
56 |
137 |
376 |
310 |
110 |
225 |
8-18 |
240 |
8-22 |
240 |
8-22 |
|
200 |
60 |
164 |
430 |
353 |
150 |
280 |
8-18 |
295 |
8-22 |
295 |
12-22 |
|
250 |
68 |
206 |
499 |
353 |
150 |
335 |
12-18 |
350 |
12-22 |
355 |
12-26 |
|
300 |
78 |
230 |
570 |
380 |
150 |
395 |
12-22 |
400 |
12-22 |
410 |
12-26 |
350 |
78 |
260 |
640 |
400 |
170 |
445 |
12-22 |
460 |
16-22 |
470 |
16-26 |
400 |
86 |
300 |
720 |
420 |
170 |
495 |
16-22 |
515 |
16-26 |
525 |
16-30 |
450 |
98 |
340 |
800 |
450 |
190 |
550 |
16-22 |
565 |
20-26 |
585 |
20-30 |
500 |
108 |
380 |
880 |
480 |
190 |
600 |
20-22 |
620 |
20-26 |
650 |
20-33 |
Standard Material Specifications
NO. |
Part Name |
CS to ASTM |
SS to ASTM (CF8) |
SS to ASTM (CF8M) |
| 1 | Body | A216 WCB | A351 CF8 (SS304) | A351 CF8M (SS316) |
| 2 | Disc | A216 WCB + Epoxy Coating | A351 CF8 (SS304) | A351 CF8M (SS316) |
| 3 | Seat Ring | NBR / EPDM / PTFE / Viton | NBR / EPDM / PTFE / Viton | NBR / EPDM / PTFE / Viton |
| 4 | Stem | A182 F6 410 SS | A182 F304 | A182 F316 |
| 5 | Gasket | Graphite + SS304 | PTFE / Graphite + SS304 | PTFE / Graphite + SS316 |
| 6 | Worm Gear Housing | Cast Iron / Carbon Steel | Cast Iron / Carbon Steel | Cast Iron / Carbon Steel |
| 7 | Worm Gear | Carbon Steel / Alloy Steel | Carbon Steel / Alloy Steel | Carbon Steel / Alloy Steel |
| 8 | Handwheel | Cast Iron (A197) | Cast Iron (A197) | Cast Iron (A197) |
| 9 | Stem Packing | Flexible Graphite / PTFE | Flexible Graphite / PTFE | Flexible Graphite / PTFE |
| 10 | O-Ring | NBR / EPDM / Viton | NBR / EPDM / Viton | NBR / EPDM / Viton |
| 11 | Nameplate | Stainless Steel (SS304) | Stainless Steel (SS304) | Stainless Steel (SS316) |
Suitable Medium: Water, Air, Gas, Oil, Mildly Corrosive Fluids (Depends on Seat Material)
