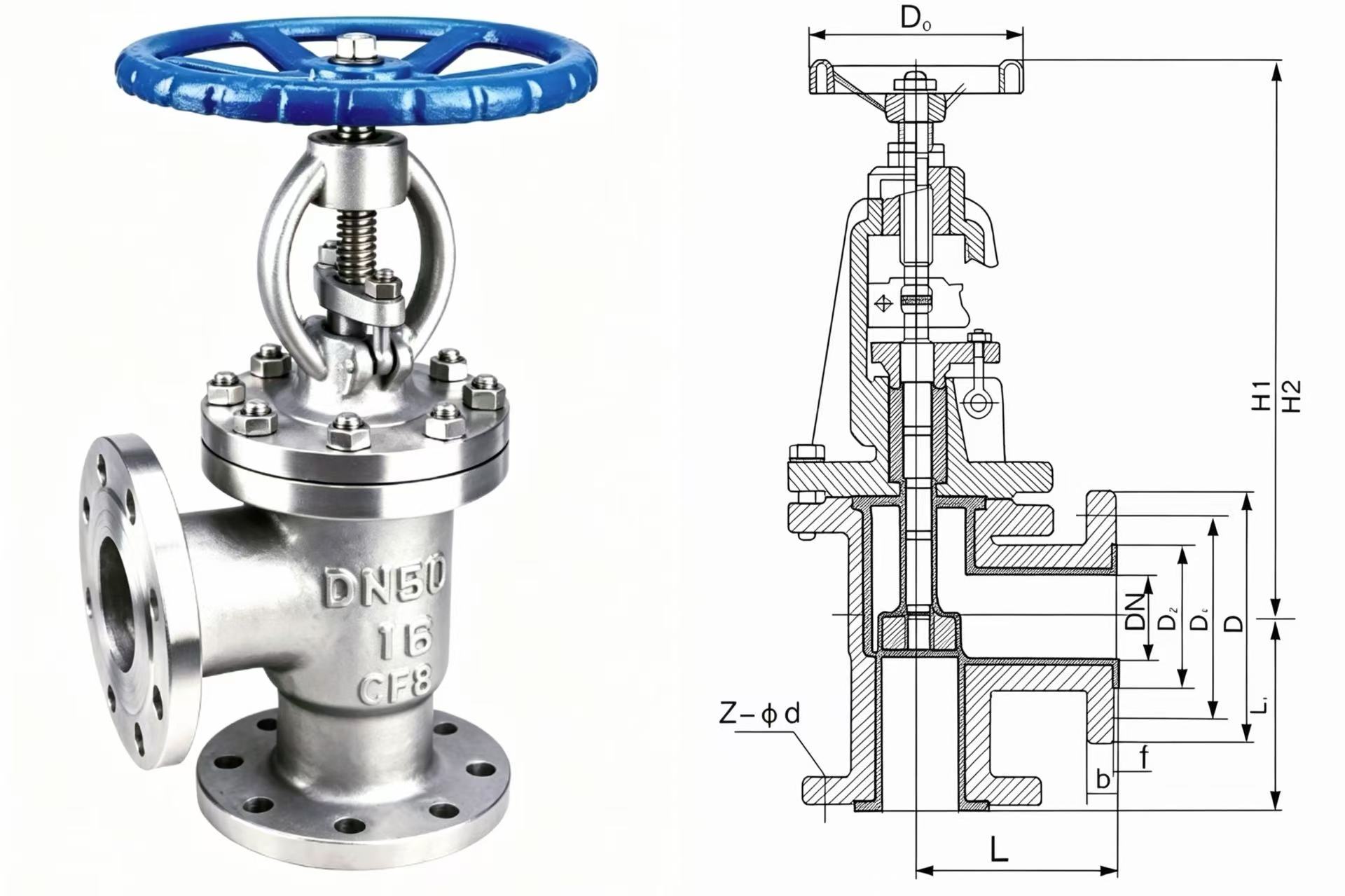

J44H/Y/W-1.6C/P/R/L 2.5C/P/R/L Angle Globe Valves
Type: Angle globe valve
Nominal Pressure: PN1.6, PN2.5
Seal Type: H (Hard seal), Y (Hard alloy seal), W (Body direct weld seal)
Structure: Rising stem, Plug disc, Bolted bonnet
Seat form: Threaded / Welded replaceable seat ring
Material Code & Grade:
C: Carbon Steel (WCB)
P: Cr-Ni-Ti Stainless Steel (CF8)
R: Cr-Ni-Mo Stainless Steel (CF8M)
L: Low Temperature Carbon Steel (LCB)
Standards Compliance
Design & Manufacture: ANSI B16.34, DIN 3352, JIS B2001
Face-to-Face Dimension: ANSI B16.10, DIN 3202-1, JIS B2002
Flange Connection: ANSI B16.5, DIN 2543 / DIN 2545, JIS B2212 / JIS B2214
Pressure & Sealing Test: API 598, DIN 3230, JIS B2004
Butt Weld End: ANSI B16.25, DIN 2559, JIS B2220
Key Features
1.90° angle flow design Optimized flow path eliminates pipeline elbows, lowers pressure loss and saves installation space.
2.Rising stem structure Direct visual indication of open/closed position, ensures safe and intuitive operation.
3.Replaceable seat ring Excellent tight shutoff performance, easy for on-site maintenance and part replacement.
4.Smooth operation Anti-friction internal components reduce operating torque for easy opening and closing.
5.Diversified material & seal options Multiple materials and seal types adapt to water, steam, oil and various corrosive media.
6.Multi-standard compatibility Compliant with American, German and Japanese standards, suitable for global industrial projects.
Test Pressure
|
Nominal pressure PN(MPa) |
Test pressure(MPa) | |||
|
Shell |
Seal |
Seal |
Back seat | |
|
1.6 |
2.4 |
1.8 |
0.6 |
1.8 |
|
2.5 |
3.8 |
2.8 |
0.6 |
2.8 |
|
4 |
6 |
4.4 |
0.6 |
4.4 |
|
6.4 |
9.6 |
7 |
0.6 |
7 |
|
10 |
15 |
11 |
0.6 |
11 |
|
16 |
24 |
18 |
0.6 |
18 |
Suitable Scope
|
Shell material |
Applicable medium |
Applicable temperature ℃ |
|
Cr.Ni.Ti steel(P type) |
Nitric acid |
≤200 |
|
Cr.Ni.Mo.Ti steel(R type) |
Acetic acid |
≤200 |
|
Carbon steel(C type) |
Water,steam,oil goods |
≤425 |
|
Cr.Mo steel(I type) |
Water,steam,oil goods |
≤550 |
J44H/Y/W-1.6C/P/R/L 2.5C/P/R/L Angeld Globe Valves
|
DN(mm) |
Main connecting dimensions |
|||||||||
|
L |
D |
D1 |
D2 |
b |
f |
Z-Φd |
D0 |
H1 |
H2 |
|
|
25 |
160 |
115 |
85 |
65 |
18 |
3 |
4-14 |
100 |
220 |
236 |
|
32 |
180 |
135 |
100 |
78 |
18 |
3 |
4-18 |
120 |
251 |
273 |
|
40 |
200 |
145 |
110 |
85 |
20 |
3 |
4-18 |
140 |
283 |
306 |
|
50 |
230 |
160 |
125 |
100 |
20 |
3 |
4-18 |
160 |
316 |
344 |
|
65 |
290 |
180 |
145 |
120 |
22 |
3 |
4-18 |
180 |
353 |
383 |
|
80 |
310 |
195 |
160 |
135 |
22 |
3 |
8-18 |
200 |
437 |
479 |
|
100 |
350 |
215 |
180 |
155 |
24 |
3 |
8-18 |
240 |
479 |
529 |
|
125 |
400 |
245 |
210 |
180 |
26 |
3 |
8-18 |
280 |
542 |
608 |
|
150 |
480 |
280 |
240 |
210 |
28 |
4 |
8-18 |
320 |
605 |
680 |
|
200 |
600 |
335 |
295 |
265 |
30 |
4 |
12-23 |
360 |
650 |
755 |
