Sleeve Plug Valve

Scope of application

At present, plug valves are widely used in oilfield exploitation, conveying and scoring equipment, as well as in petrochemical, chemical, gas, natural gas, liquefied petroleum gas, HVAC industry and general industry.

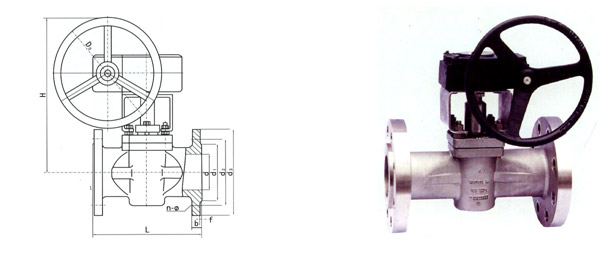

Structural diagram

Main dimensions and connection dimensions Note: Caliber 4" or more with turbine

Nominal Pressure (MPa)	Nominal Diameter (in)	Size (mm)
		d	d1	d2	d3	L	b-f	N-dia	H	Lo	Do
150Lb	1/2	13	35	60.5	89	108	9-2	4-dia15	110	175	-
	3/4	19	43	70	98	117	9-2	4-dia15	115	175	-
	1	25	51	79.5	108	127	10-2	4-dia15	115	175	-
	11/4	32	64	89	117	140	11-2	4-dia15	135	220
	11/2	38	73	98.5	127	165	13-2	4-dia15	140	280	-
	2	51	92	120.5	152	178	14-2	4-dia19	150	305	-
	21/2	64	105	139.5	178	190	16-2	4-dia19	165	350	-
	3	76	127	152.5	190	203	17-2	4-dia19	180	405	-
	4	102	157	190.5	229	229	22-2	8-dia19	380	-	300
	5	127	186	216	254	254	22-2	8-dia22	460	-	300
	6	152	216	241.5	279	267	24-2	8-dia22	520	-	320
	8	203	270	298.5	343	292	27-2	8-dia22	580	-	320
	10	254	324	362	406	330	29-2	12-dia25	620	-	350
	12	305	381	432	483	356	30-2	12-dia25	680	-	380
300Lb	1/2	13	35	66.5	95	140	13-2	4-dia15	110	175	-
	3/4	19	43	82.5	117	152	14-2	4-dia19	115	175	-
	1	25	51	89	124	165	16-2	4-dia19	115	175	-
	11/4	32	64	98.5	133	178	17-2	4-dia19	135	220	-
	11/2	38	73	114.5	156	190	19-2	4-dia22	140	280	-
	2	51	92	127	165	216	21-2	8-dia19	150	305	-
	21/2	64	105	149	190	241	24-2	8-dia22	165	350	-
	3	76	127	168.5	210	283	27-2	8-dia22	180	405	-
	4	102	157	200	154	305	30-2	8-dia22	380	-	300
		127	186	235	179	381	33-2	8-dia22	460		300
	6	152	216	270	318	403	35-2	12-dia22	520	-	320
	8	203	270	330	381	419	40-2	12-dia25	580	-	320
		254	324	387.5	445	457	46-2	16-dia29	620		350
	12	305	381	451	521	503	49-2	16-dia32	680	-	380

(600Lb-900Lb)

Main dimensions and connection dimensions Note: Diameter 4" or more with worm gear

Nominal Pressure (MPa)	Nominal Diameter (in)	Size (mm)
		d	d1	d2	d3	L	b-f	N-dia	H	Lo	Do
600Lb	1/2	13	35	66.5	95	165	15-7	4-dia15	110	175	-
	3/4	19	43	82.5	118	190	16-7	4-dia19	115	175	-
	1	25	51	89	124	216	18-7	4-dia19	115	175	-
	11/4	32	64	98.5	133	229	21-7	4-dia19	135	220
	11/2	38	73	114.5	156	241	23-7	4-dia22	140	280	-
	2	51	92	127	165	292	26-7	8-dia19	150	305	-
	21/2	64	100	149	190	330	29-7	8-dia22	165	380	-
	3	76	127	168	210	356	32-7	8-dia22	180	450	-
	4	102	157	216	273	432	38-7	8-dia25	380	-	300
	5	127	186	266.5	330	508	45-7	8-dia29	460	-	300
	6	152	216	292	356	559	48-7	12-dia29	520	-	320
	8	200	270	349	419	660	56-7	12-dia32	580	-	320
	10	248	324	432	508	787	64-7	16-dia35	620	-	350
	12	298	381	489	559	838	67-7	20-dia35	680	-	380
900Lb	1/2	1317	35	82.5	121	229	22.5-7	4-dia35	110	175	-
	3/4	22	43	88.5	130	229	22.5-7	4-dia23	115	175	-
	1	28	51	101.6	149	254	29-7	4-dia23	115	175	-
	11/4	35	64	111.1	159	279	29-7	4-dia26	135	220	-
	11/2	47	73	123.8	178	305	32-7	4-dia26	140	280	-
	2	57	92	165.1	216	368	38.5-7	8-dia29	150	305	-
	21/2	73	105	190.5	244	419	41.5-7	8-dia26	165	380	-
	3	98	127	190.5	241	381	38.5-7	8-dia29	180	450	-
	4	121	157	234.9	292	457	44.5-7	8-dia26	380	-	300
		146	186	279.4	349	559	51-7	8-dia32	460		300
	6	190	216	317.5	381	610	56-7	12-dia35	520	-	320
	8	238	270	393.7	470	737	70-7	12-dia32	580	-	320
		282	324	469.9	545	938	63.5-7	16-dia39	620		350
	12		381	533.4	610	965	79.5-7	20-dia39	680	-	380

Plug valve selection guide

According to the structural characteristics and design functions of the plug valve, it is recommended to choose according to the following principles:

1. For distributing the medium and changing the flow direction of the medium, its working temperature <= 300¡ãC, nominal pressure <= 1.6 MPa, nominal diameter <= 300 mm, it is recommended to use a three-way plug valve.
2. For the equipment and pipelines of milk, juice, beer and other food enterprises and pharmaceutical factories, it is recommended to use austenitic stainless steel fixed conical plug valves.
3. In the branch pipes, refining and cleaning equipment of oilfield exploitation, natural gas field exploitation, pipeline transportation, oil-sealed conical plug valves with nominal pressure level <= CL300, nominal diameter <= 300 mm, and working temperature <= 340¡ãC.
4. For branch pipes, refining and cleaning equipment for oilfield exploitation, natural gas field exploitation, pipeline transportation, nominal pressure level <= CL2500, nominal diameter <= 900 mm, and working temperature <= 340¡ãC, it is recommended to use pressure balanced inverted conical plug valves.
5. In the large-scale chemical industry, where pipelines and equipment containing corrosive media require fast opening or closing speed, for nitric acid-based media, 1Cr18Ni9 stainless steel PTFE sleeve sealed conical plug valves can be selected.
6. In the pipeline neutralization equipment of gas, natural gas and HVAC systems, when the nominal pressure <= 1.0 MPa and the nominal diameter <= 200 mm, it is advisable to use a packing type conical plug valve.
