Comprehensive database of flange dimensions including ANSI, DIN, JIS, and BS standards. Get accurate measurements for different flange types (slip-on, weld-neck, blind) and pressure classes.

View detailed technical specifications, dimensional drawings, and material compatibility information for industrial flanges.

Generate instant 2D technical drawings for valves and flanges. Customize parameters such as size, pressure rating, connection type, and material to create professional-grade diagrams.

Export drawings in PDF for engineering documentation etc.

Calculate flow coefficient (Cv) and flow factor (Kv) for control valves, ball valves, and gate valves. Input fluid properties, pressure conditions, and flow requirements for accurate results.

Supports liquid, gas, and steam applications with built-in unit conversion (US customary & metric) for global use.

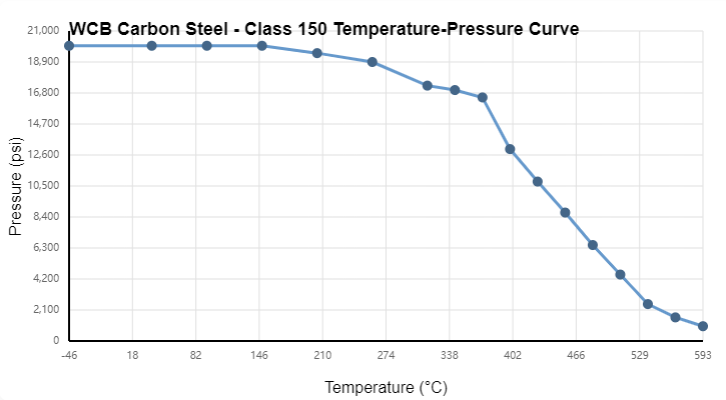

Interactive temperature-pressure rating charts for industrial valves. Check maximum allowable working pressure (MAWP) across different temperature ranges for various valve materials.

Compare ratings for carbon steel, stainless steel, and alloy valves according to ASME B16.34 and API standards.
